LLM Controls Tracing

​

What is LLMC Tracing?

​

What Gets Traced Automatically

• Flow Executions: Complete flow runs with start/end times
• Component Executions: Each component’s inputs, outputs, and execution time
• LLM API Calls: OpenAI, Anthropic, Gemini, LangChain, DSPy calls with:
  • Full request/response content
  • Token usage (input, output, total)
  • Cost per call
  • Latency
• Errors: Any exceptions or failures during execution

​

What You Can See

• Trace List: Table view of all flow executions
• Component Tree: Hierarchical view showing component execution order
• Component Details: Inputs, outputs, and execution time for each component
• Token Usage: Total tokens used per flow
• Execution Metrics: Latency, duration, and status for each trace
• Chat Messages: Full conversation history for LLM calls
• Events: Agent actions, tool calls, and streaming events

​

How LLMC Tracing Works

​

Flow-Level Tracing

• Flow name and ID
• User and session information
• Start and end timestamps
• All component executions as nested spans
• Flow-level metrics (total tokens, cost, duration)

​

Component-Level Tracing

• Component name and ID
• Input values passed to the component
• Output values produced by the component
• Execution duration
• Any errors that occurred

​

Automatic LLM Tracking

• Model name and parameters
• Full prompt/messages sent
• Generated response
• Token counts (input/output/total)
• Estimated cost
• Request latency

​

Using the Tracing UI for Debugging

​

Accessing the Tracing Page

​

Main Table View

• Trace ID: Unique identifier for the trace
• Trace Name: Name of the flow that was executed
• Session: Session ID associated with the trace
• Tokens: Total tokens used in the flow
• Execution Time: How long the flow took to execute
• Request Time: When the flow was executed
• State: Status of the execution (e.g., OK, ERROR)

​

Filtering Traces

• Select from preset ranges: Last hour, Last 24 hours, Last 7 days, Last 30 days, Last year, or All
• Use Custom to pick specific start and end dates

• Click Filters to add filter rules
• Filter by: Trace ID, Trace name, Session, Tokens, Execution time, or State
• Use operators: Equals, Not equals, Greater than, Less than, etc.
• Add multiple filters to narrow down results

• Click Sort to change sort order
• Sort by: Request time, Execution time, Tokens, Trace name, or State
• Toggle ascending/descending order

• Click Columns to show/hide specific columns
• Customize which information is displayed in the table

​

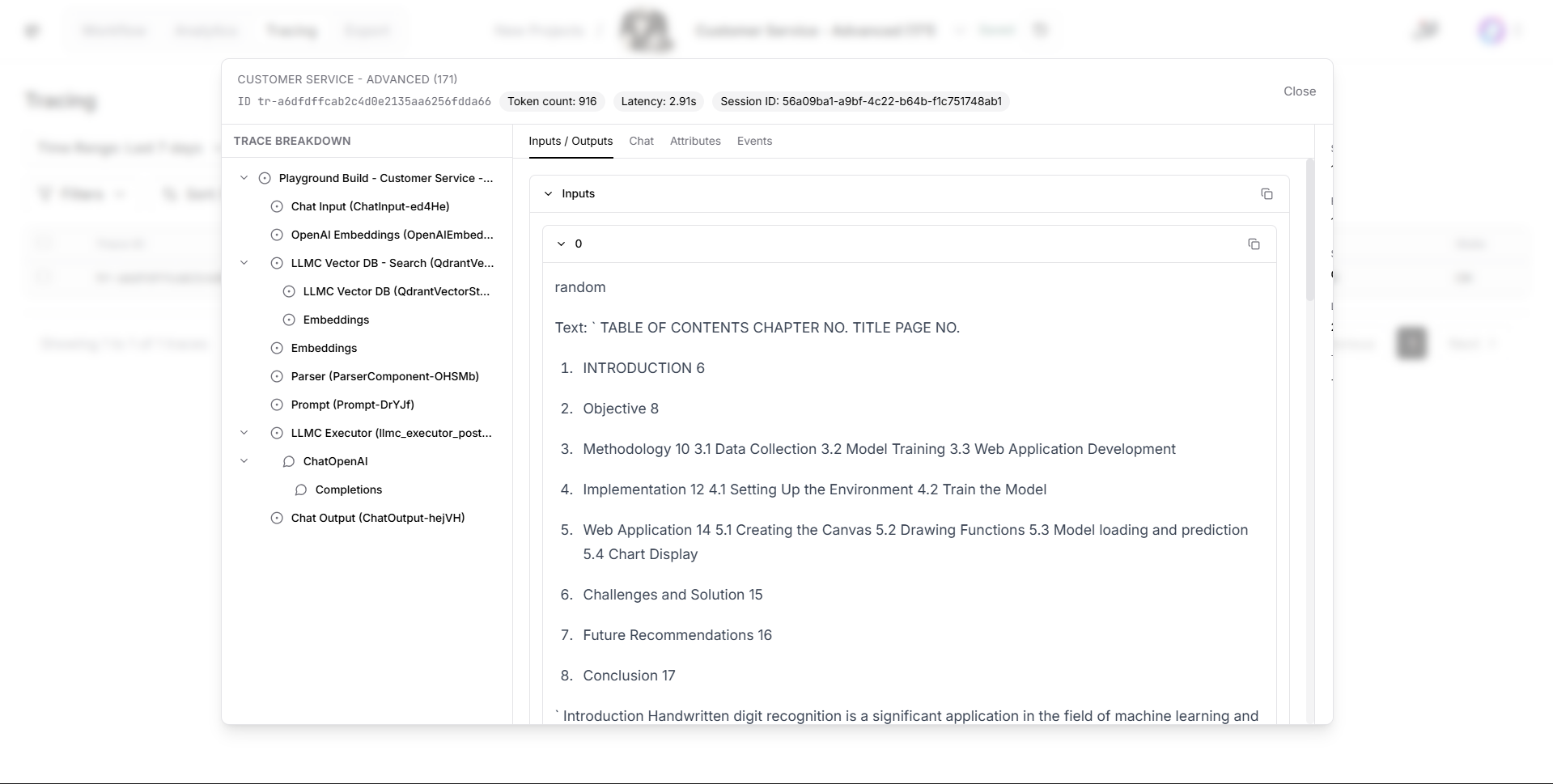

Viewing Trace Details

• Tree view of all component spans
• Icons indicate span types:
  • Chat Model (LLM calls)
  • Tool (tool/function calls)
  • Chain (LangChain chains)
  • Component (other components)
• Expand/collapse spans to see nested components
• Click on any span to view its details

• Expandable sections for inputs and outputs
• Each field shows the actual data passed to/from the component
• Chat history formatted as “Role: message”
• Copy button to copy JSON data
• “See more” for truncated content

• Shows conversation messages for LLM spans
• Displays User and Assistant messages
• Full message content with markdown rendering

• All metadata and attributes for the selected span
• Includes LLMC-specific attributes
• Expandable sections for each attribute
• Copy functionality for values

• Shows events like agent actions, tool calls, streaming tokens
• Special handling for agent_action events showing:
  • Tool name
  • Tool input
  • Log output
  • Token streaming events
  • Chunk events

• Start Time: When the trace started
• End Time: When the trace completed
• Status: Execution status
• Latency: Total execution duration
• Type: Span type (CHAT_MODEL, TOOL, CHAIN, etc.)

​

Debugging Component Issues

1. Find the failing component: Look for error status in the State column
2. Open the trace: Click on the trace to view details
3. Navigate the component tree: Use the left panel to find the problematic component
4. Click on the component span: View its inputs and outputs
5. Check the Inputs/Outputs tab: See what data was passed and what was returned
6. Review execution time: Check latency in the metadata panel

​

Debugging LLM Calls

1. Find LLM spans: Look for Chat Model icons in the trace breakdown
2. Click on the LLM span: Select it in the left panel
3. View Chat tab: See the full conversation including prompts and responses
4. Check Inputs/Outputs tab: See raw request/response data
5. Review token usage: Check the token count in the trace header
6. Check Attributes tab: See model parameters, token counts, and cost information

​

Managing Traces

• Select traces using checkboxes in the table
• Click Delete button
• Confirm deletion in the modal
• Multiple traces can be deleted at once

• Click the refresh icon to reload traces
• Resets time range to “Last 7 days”

• Navigate through pages using Previous/Next buttons
• Page numbers show current position
• Shows total number of traces

​

Implementing LLMC Tracing in Custom Components

class MyComponent(Component):

    def execute(self):

        component_id = getattr(self, "_id", None)

        metadata = {

            "flow_id": str(self.graph.flow_id) if self.graph else None

        }

        with mlflow_component_span(

            component_name=self.display_name or "MyComponent",

            component_id=component_id,

            inputs={"input_value": self.input_value},

            metadata=metadata,

        ) as span:

            # Your component logic here

            result = self.process(self.input_value)

            # Log outputs for tracing

            if span:

                span.set_outputs({

                    "output_length": len(result),

                    "output_data": result[:1000]  # Limit size for large outputs

                })

            return result

• span.set_inputs(inputs): Log component inputs (dict)
• span.set_outputs(outputs): Log component outputs (dict)
• Errors are automatically captured if they occur within the span

​

Common Use Cases

​

Finding Slow Components

1. Sort traces by Execution Time (descending)
2. Open a slow trace
3. Navigate through the component tree
4. Check the Latency in the metadata panel for each component
5. Identify bottlenecks

​

Tracking Token Usage and Costs

1. View the Tokens column in the main table
2. Click on a trace to see detailed token breakdown
3. Check the Attributes tab for LLM spans to see:
   • Input tokens
   • Output tokens
   • Total tokens
   • Estimated cost

​

Debugging Failed Flows

1. Filter by State = ERROR
2. Open the failed trace
3. Navigate to the component with error status
4. Check Inputs/Outputs tab to see what went wrong
5. Review error messages in the Attributes tab

​

Comparing Flow Runs

1. Use filters to find multiple traces of the same flow
2. Open traces side-by-side (in different browser tabs)
3. Compare:
   • Execution times
   • Token usage
   • Component outputs
   • Error patterns
